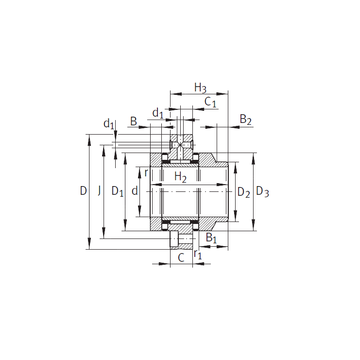

ZARF40100-L-TV INA Complex Bearings
category
Complex Bearings
INA ZARF40100-L-TV SPECIFICATIONS
- INA
ZARF40100-L-TV
- Negotiation
- Negotiation
-
Qishun Industrial Manufacture Co.,Limited.2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
INA ZARF40100-L-TV Product Description
 |  |  | |
| Name | ZARF40100-L-TV | BEAM 040100-2RZ | ZKLF40100-2RS-2AP |
| Brand | INA | SKF | INA |
| Size (mm) | 40x100x18(mm) | 40x100x34(mm) | 40x100x68(mm) |
| Bore Diameter (mm) | 40(mm) | 40(mm) | 40(mm) |
| Outer Diameter (mm) | 100(mm) | 100(mm) | 100(mm) |
| Width (mm) | 18(mm) | 34(mm) | 68(mm) |
| d | 40 mm 1.5748 in | 40 mm 1.5748 in | 40 mm 1.5748 in |
| D | 100 mm 3.937 in | 100 mm 3.937 in | 100 mm 3.937 in |
| C | 18 mm 0.7087 in | 68 mm 2.6772 in | |
| H3 | 51 mm 2.0079 in | ||
| d1 | 3,2 mm 0.126 in | 58 mm 2.2835 in | |
| r min. | 0,3 mm 0.0118 in | 0,3 mm 0.0118 in | |
| r1 min. | 0,6 mm 0.0236 in | 0,6 mm 0.0236 in | |
| B | 11 mm 0.4331 in | 68 mm 2.6772 in | |
| B1 | 27 mm 1.063 in | ||
| B2 | 12 mm 0.4724 in | ||
| C1 | 10 mm 0.3937 in | ||
| D1 | 65 mm 2.5591 in | ||
| D2 | 50 mm 1.9685 in | ||
| D3 | 63 mm 2.4803 in | ||
| H2 | 70 mm 2.7559 in | ||
| J | 80 mm 3.1496 in | 80 mm 3.1496 in | 80 mm 3.1496 in |
| da min. | 48 mm 1.8898 in | ||
| Da max. | 66 mm 2.5984 in | ||
| Weight | 1,45 Kg | 2,92 Kg | |
| Dynamic load rating radial (C) | 27,5 kN | ||
| Dynamic load rating axial (C) | 59 kN | ||
| Static load rating radial (C0) | 53 kN | ||
| Static load rating axial (C0) | 163 kN | ||
| (Grease) Lubrication Speed | 1 600 r/min |
